RKM Rubber Impact Roller – Extra Rock Jam Protection

RKM Rubber Impact Roller

A proven value-for-money performer

The RKM Rubber Impact Roller is a proven performer in materials handling environments such as coal, iron ore and grain. The impact disc’s are available in 2 different profiles depending on our customers preference. The rollers quality construction, triple layered sealing package and additional outer cover make the RKM Rubber Impact roller great value for money whilst maintain maximum performance. The roller is also available with an extensive list of product upgrades to meet your specific operating conditions.

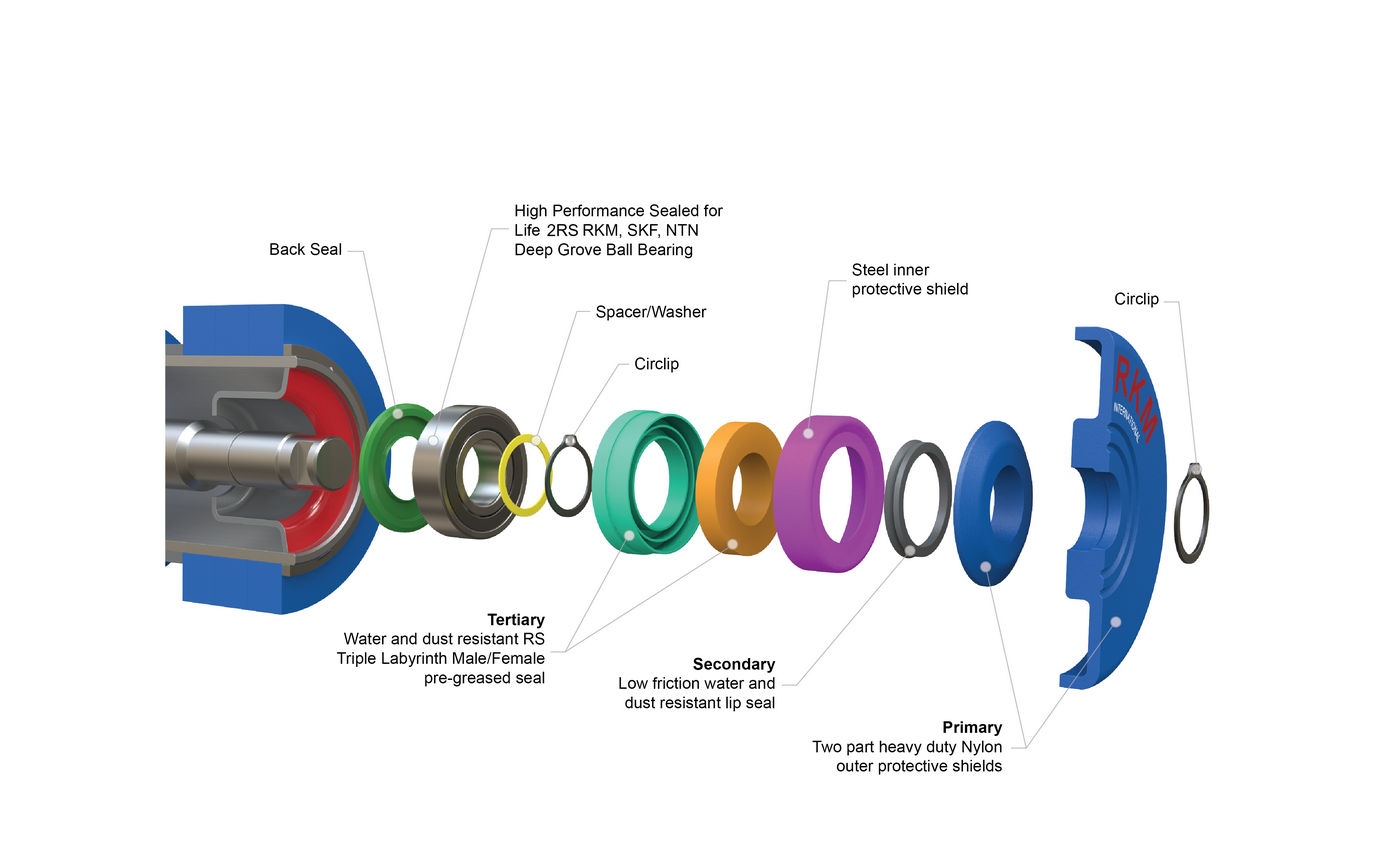

RKM Rubber Impact Roller Seal Package

Seal Package

RKM Roller Seal Package

  • Industry proven performance
  • Large outer shield for extra rock jam protection from skirt spillage
  • 3 layers of bearing protection preventing the ingress of foreign material
  • Optimal balance between sealing protection and low frictional resistance
  • Ball bearings or spherical roller bearings can be fitted for high impact applications
  • Water & dust resistant
  • Bearing end float adjusted to meet your specifications

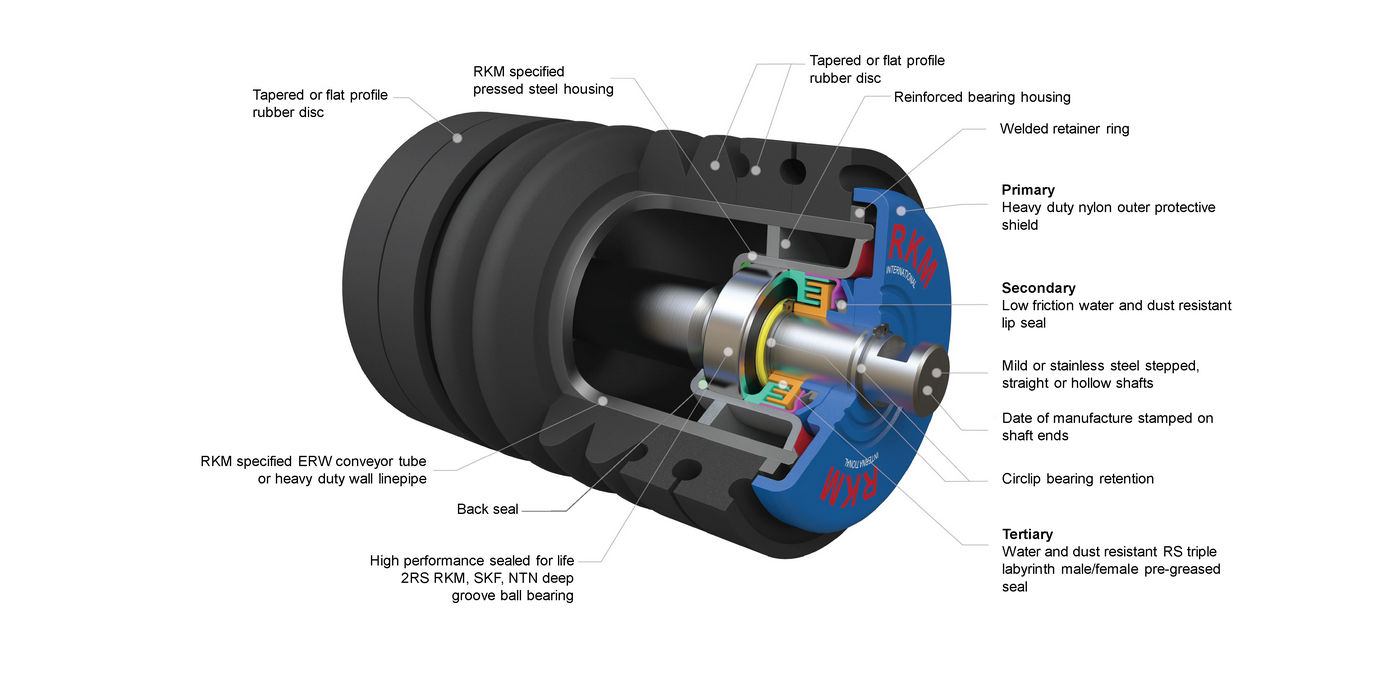

Roller Assembly

RKM Rollers Roller Assembly

  • Balanced to ISO 1940-1:2016-G40
  • Excellent impact load dampening
  • 2 x disc profiles for various applications or preferences
  • Press fitted rubber discs and welded end retainers ensure positive retention during operation


RKM Rollers Roller Assembly

  • FRAS Rubber Discs
  • FRAS Seals
  • Spherical Roller Bearings
  • Reinforced Bearing Housing
  • Name Brand Bearings
  • RKM Smart Idler – Live Roller Monitoring
